Dettagli del prodotto
Luogo di origine: Shanghai
Marca: TANKII
Certificazione: ROHS,ISO9001
Numero di modello: CuNi44
Termini di trasporto & di pagamento
Quantità di ordine minimo: 20kg
Prezzo: usd+15~30+kg
Imballaggi particolari: bobina, cartone, pallet
Tempi di consegna: 8-20 giorni
Termini di pagamento: L/C, T/T, Western Union
Capacità di alimentazione: 200+TON+MONTH
Materiale: |
Nichel di rame |
Forma: |
Giro |
Dimensione: |
0,01--10mm |
Resistenza alla trazione (N/mm2): |
>420 |
Materiale: |
Nichel di rame |
Forma: |
Giro |
Dimensione: |
0,01--10mm |
Resistenza alla trazione (N/mm2): |
>420 |
Cuprothal 294/Alloy 294/MWS-294 copper nickel constantan wire CuNi44
Copper nickel resistance heating wire, which has low electric resisitance, good heat-resistant and corrosion-resistant, easy to be processed and lead welded. It is used to make the key components in the thermal overload relay, low resistance thermal circuit breaker, and the electrical appliances. It is also an important material for electrical heating cable. It's similar as s type cupronickel.
The more composition of Nickel,the more silver white the surface to be.
Size dimension range:
Wire: 0.01-10mm

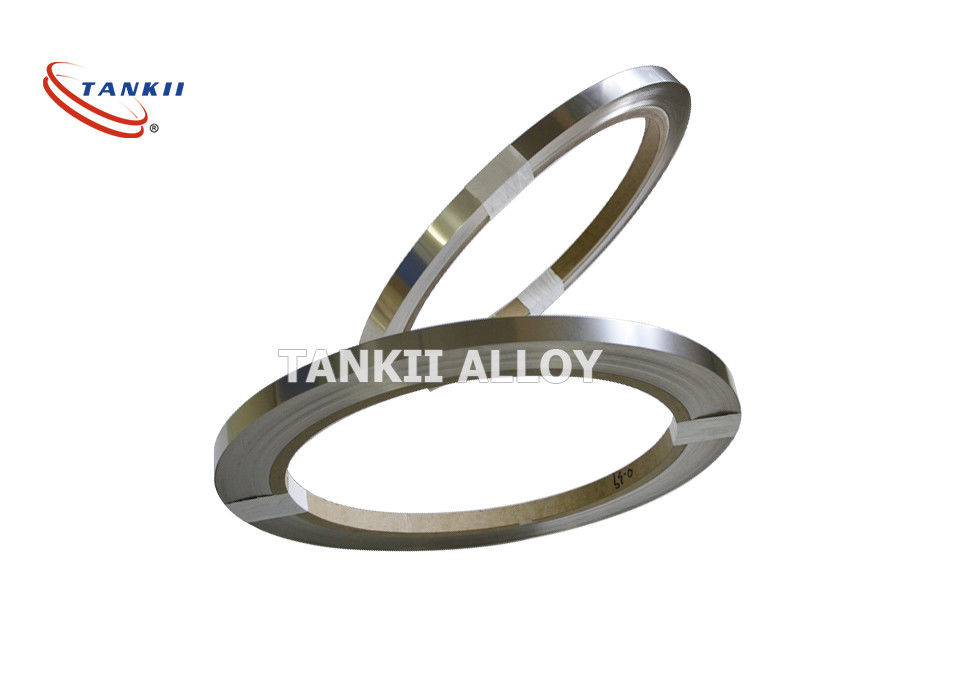

Ribbons: 0.05*0.2-2.0*6.0mm
Strip: 0.05*5.0-5.0*250mm
Bar:10-50mm
Chemical Content(%) CuNi44
| Ni | Mn | Fe | Si | Cu | Other | ROHS Directive | |||
| Cd | Pb | Hg | Cr | ||||||
| 44 | 1.50% | 0.5 | - | Bal | - | ND | ND | ND | ND |
Mechanical Properties CuNi44
| Max Continuous Service Temp | 400 ºC |
| Resistivity at 20ºC | 0.49 ± 5% ohm*mm2/m |
| Density | 8.9 g/cm3 |
| Temperature Coefficient of Resistance | < -6 ×10-6/ºC |
| EMF VS Cu (0~100ºC) | -43 μV/ºC |
| Melting Point | 1280 ºC |
| Tensile Strength | Min 420 Mpa |
| Elongation | Min 25% |
| Micrographic Structure | Austenite |
| Magnetic Property |
Non. |
Copper nickel alloy series:
CuNi1, CuNi2, CuNi6, CuNi8, CuNi10, CuNi14, CuNi19, CuNi23,CuNi30, CuNi34, CuNi44.
Also named NC003, NC005, NC010, NC012, NC015, NC020, NC025, NC030, NC035, NC040, NC050.
