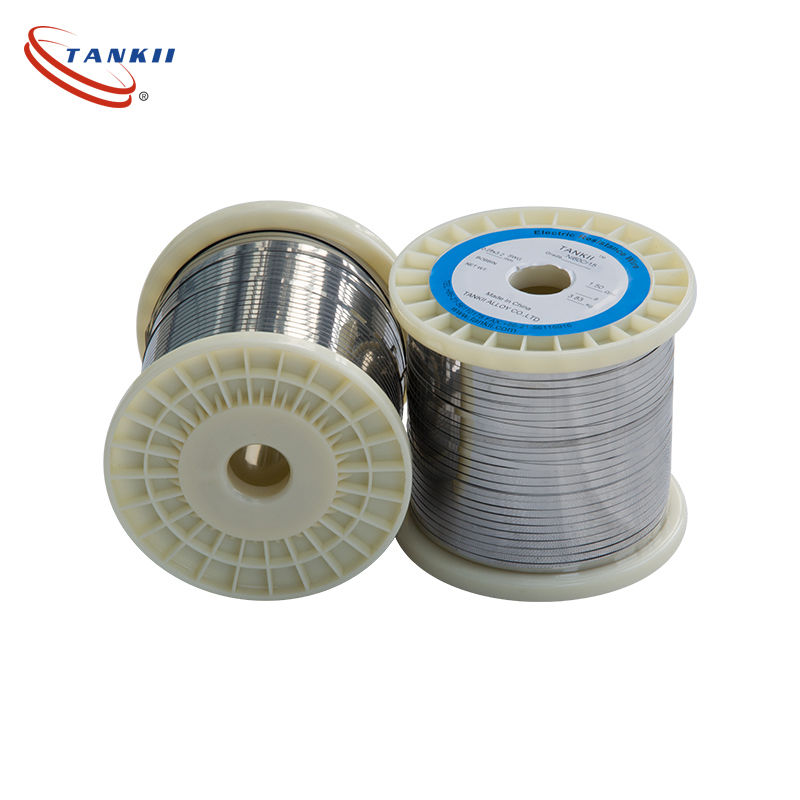

0.2*5mm Nickel-Chromium 6015 / Chromel C Flat Wire Used For Planar/Strip Heating Elements

Name: 0.2*5mm Nickel-Chromium 6015 / Chromel C Flat Wire Used For Planar/Strip Heating Elements
Brand: Shanghai Tankii Alloy Material Co.,Ltd
SKU: Nicromo
Price: 300.00 USD
Availability: InStock

Dettagli del prodotto

Luogo di origine: Cina continentale

Marca: Tankii

Certificazione: ISO9001

Numero di modello: Nicromo

Termini di trasporto & di pagamento

Quantità di ordine minimo: Negoziabile

Prezzo: Negoziabile

Imballaggi particolari: Pacchetto standard del exoprt

Tempi di consegna: Circa 20 giorni dopo il pagamento

Termini di pagamento: T/T, Paypal, Western Union, ,

Capacità di alimentazione: 1000Ton all'anno

Ottenga il migliore prezzo

Contatta ora

Specificità

Descrizione

Specificità

Evidenziare:

Articolo:	Cavo piatto in nichel-cromo 6015/cromo C da 0,2 x 5 mm	Materiale:	Lega nicr
Superficie:	Luminoso	Spessore:	0,005 mm o più
Tempo di punta:	20 giorni secondo la quantità dell'ordine	Applicazione:	Materiali resistenti alla deformazione
Polvere o no?:	Non polvere	MOQ:	20kg

Articolo:	Cavo piatto in nichel-cromo 6015/cromo C da 0,2 x 5 mm
Materiale:	Lega nicr
Superficie:	Luminoso
Spessore:	0,005 mm o più
Tempo di punta:	20 giorni secondo la quantità dell'ordine
Applicazione:	Materiali resistenti alla deformazione
Polvere o no?:	Non polvere
MOQ:	20kg

Descrizione

0.2*5mm Nickel-Chromium 6015 / Chromel C Flat Wire Used For Planar/Strip Heating Elements

0.2*5mm Nickel-Chromium 6015 / Chromel C Flat Wire Used For Planar/Strip Heating Elements

Nickel-chromium 1560 (Cr15Ni60) is a classic high-temperature electrical heating alloy in the nickel-chromium series. Its core advantages include high resistivity, high-temperature stability, good oxidation resistance, and non-magnetic properties. In the form of flat wire, it is mainly used in scenarios such as planar/strip heating elements, industrial furnaces, and home appliance heating bodies.

1. Chemical composition (mass fraction) Ni: 58%–61% (providing high-temperature stability, corrosion resistance, and austenitic matrix) Cr: 14%–16% (forming a dense Cr₂O₃ protective film, enhancing high-temperature oxidation resistance) Fe: balance (≤8%), C≤0.1%, Si≤1.0%, Mn≤0.5%

2. Key physical/electrical properties

Density: 8.2 g/cm³

Melting point: 1380–1450℃

Resistivity (20℃): 1.04–1.12 μΩ・m (high resistivity, suitable for heat generation)

Maximum long-term use temperature: 1100–1200℃ (in air/neutral atmosphere)

Thermal expansion coefficient: approximately 12.4×10⁻⁶/℃ (20–1000℃)

Thermal conductivity: approximately 12–13 W/(m・K) (20℃)

3 .Unique Advantages of Flat Wires/Strips (Compared to Round Wires):

a . Faster Heat Dissipation and More Uniform Temperature: The flat cross-section has a large surface area, allowing heat to dissipate easily and reducing the risk of localized overheating.

b. Superior Fit and Installation: It can fit tightly against the heating surface, resulting in high heat conduction efficiency; it is easy to bend and shape, suitable for complex-shaped components.

c. Large Contact Area and Reliable Welding: The flat surface has low contact resistance, resulting in stronger welding/riveting, suitable for precision electrical appliances and sensors.

d. Fatigue Resistance and Longer Lifespan: The flat structure has better stress distribution, making it less prone to breakage under repeated on/off/thermal cycling.

e. Flexible Specifications: Thickness 0.025–2mm, Width 0.5–5mm (customizable), suitable for micro to high-power components.

0.2*5mm Nickel-Chromium 6015 / Chromel C Flat Wire Used For Planar/Strip Heating Elements 0

4. Chemical Composition and Properties of nichrome alloys:

Propertes/Grade		Karma	NiCr 80/20	NiCr 70/30	NiCr 60/15	NiCr 35/20	NiCr 30/20
Main Chemical Composition(%)	Ni	Bal.	Bal.	Bal.	55.0-61.0	34.0-37.0	30.0-34.0
	Cr	19~21.5	20.0-23.0	28.0-31.0	15.0-18.0	18.0-21.0	18.0-21.0
	Fe	2~3	≤ 1.0	≤ 1.0	Bal.	Bal.	Bal.
	Al	2.7~3.2
	Mn	0.5~1.5
Max Working Temperature(ºC)		300	1200	1250	1150	1100	1100
Resistivity at 20ºC (μ Ω · m)		1.33	1.09	1.18	1.12	1.04	1.04
Density(g/cm3)		8.1	8.4	8.1	8.2	7.9	7.9
Thermal Conductivity (KJ/m· h· ºC)		46	60.3	45.2	45.2	43.8	43.8
Coefficient of Thermal Expansion(α × 10-6/ºC)		-	18	17	17	19	19
Melting Point(ºC)		1400	1400	1380	1390	1390	1390
Elongation(%)		10~20	> 20	> 20	> 20	> 20	> 20
Micrographic Structure		austenite	austenite	austenite	austenite	austenite	austenite
Magnetic Property		Non	nonmagnetic	nonmagnetic	nonmagnetic	nonmagnetic	nonmagnetic

5. Advantages & services

ROHS cerfication;
Small orders are accepted;
Factory direct sale;
Timely delivery;
Samples are available;

6. Features

Good oxidation resistance;
Low embrittlement at high temperature;
Good plasticity(easier to give them a shape);
Nice performance and processing;

7. Applications scenarios

Electronic components: used for manufacturing precision resistors, potentiometers, and other components due to their low temperature coefficient of resistance and stable mechanical properties. ‌
Electric heating equipment: As a heating element or high-temperature resistance wire, it is commonly used in electric heating alloys, electric blankets, etc. ‌
Industrial sector: Partial replacement of stainless steel materials for manufacturing corrosion-resistant components.

8. More pictures on our products:

0.2*5mm Nickel-Chromium 6015 / Chromel C Flat Wire Used For Planar/Strip Heating Elements 1

0.2*5mm Nickel-Chromium 6015 / Chromel C Flat Wire Used For Planar/Strip Heating Elements 2

0.2*5mm Nickel-Chromium 6015 / Chromel C Flat Wire Used For Planar/Strip Heating Elements 3

Enameled Nichrome wire:

0.2*5mm Nickel-Chromium 6015 / Chromel C Flat Wire Used For Planar/Strip Heating Elements 4

About Tankii:

Tankii is a professional supplier specializing in electrothermal alloys, precision alloys, and thermocouple materials.

Its main products include nickel-chromium, iron-chromium-aluminum, copper-nickel, and pure nickel wires/strips,

and it exports to over 50 countries.

Core Products (TANKII Brand)

1. Electrothermal Alloys (Mainly Ni-Chromium 8020 Flat Wire/Strip)
Ni-Chromium Series: Cr20Ni80 (8020), Cr15Ni60, Cr30Ni70 Wire/Strip
Fe-Chromium-Aluminum Series: 0Cr21Al6, 0Cr25Al5, 0Cr27Al7Mo2 Wire/Strip
Copper-Nickel Series: CuNi1/2/6/8/10/14/19/23/30/34/40/44 Wire/Strip
Pure Nickel Series: N4, N6 Wire/Strip/Bar

2. Precision Resistance Alloys
Manganin, Constantan, Kamar wire, Nickel-Iron alloy wire/strip

3. Thermocouples and Compensating Wires
K, J, E, T, N, S, R, B type thermocouple wires/compensating wires

Core Advantages and Positioning

Focusing on Electrothermal/Precision Alloys: 35 years of deep expertise, specializing in flat wires/strips (highly matched to your needs)
Capacity and Delivery: Large-scale production at Xuzhou base, with an annual output of approximately 3,000 tons, ensuring ample inventory and fast delivery.
Export-Oriented: Products sold to over 50 countries, compatible with international standards (European/American standard shafts)
Application Scenarios: Home appliance heating, industrial electric furnaces, automotive thermal management, medical instruments, 3D printing heated beds, etc.

Please Contact me for more details.
