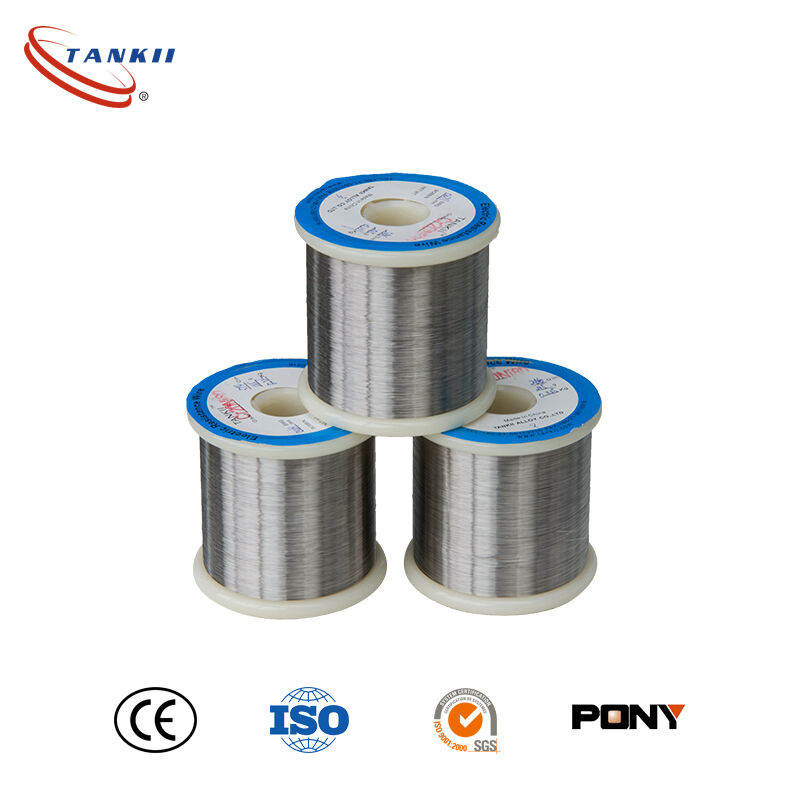

0Cr25Al5 FeCrAl Alloy Wire / High Resistance Heating Wire for Industrial Furnace

Name: 0Cr25Al5 FeCrAl Alloy Wire / High Resistance Heating Wire for Industrial Furnace
Brand: Shanghai Tankii Alloy Material Co.,Ltd
SKU: 0cr25al5
Price: 26.00 USD
Availability: InStock

Dettagli del prodotto

Luogo di origine: Shangai, Cina

Marca: TANKII

Certificazione: ISO9001 SGS

Numero di modello: 0cr25al5

Termini di trasporto & di pagamento

Quantità di ordine minimo: 5 chilogrammi

Prezzo: Negoziabile

Imballaggi particolari: Bobina + cartone + caso di Wooned

Tempi di consegna: 7-20 giorni

Termini di pagamento: L/C, D/A, D/P, T/T, Western Union

Capacità di alimentazione: 500 tonnellate al mese

Ottenga il migliore prezzo

Contatta ora

Specificità

Descrizione

Specificità

Evidenziare:

Grado di lega:	0Cr25Al5 (FeCrAl 255)	Temperatura operativa massima:	1300°C (2372°F)
Resistenza elettrica a 20°C:	1,42μΩ·m	Densità:	7,1 g/cm³
Punto di fusione:	1500-1520°C	Applicazione tipica:	Elementi per forni industriali ad alta temperatura, riscaldatori elettrici, forni per ceramica, risc

Grado di lega:	0Cr25Al5 (FeCrAl 255)
Temperatura operativa massima:	1300°C (2372°F)
Resistenza elettrica a 20°C:	1,42μΩ·m
Densità:	7,1 g/cm³
Punto di fusione:	1500-1520°C
Applicazione tipica:	Elementi per forni industriali ad alta temperatura, riscaldatori elettrici, forni per ceramica, risc

Descrizione

0Cr25Al5 FeCrAl Alloy Wire / High Resistance Heating Wire for Industrial Furnace

Product Description

FeCrAl Alloy Resistance Wire - Product Details

FeCrAl alloy wire (Iron-Chromium-Aluminum) is a high-resistance heating material widely used in electric heating elements for industrial furnaces, household appliances, and high-temperature applications. It offers excellent oxidation resistance, high resistivity, and long service life at temperatures up to 1400°C.

1) Material available:

Cr20Ni80, Cr30Ni70, Cr15Ni60, Cr20Ni35, Cr20Ni30, Cr20Ni25, NiCr25FeAlY, Cr13Al4, Cr21Al4, Cr14Al4, Cr20Al4, Cr21Al6, Cr23Al5, Cr25Al5, Cr21Al6Nb, Cr25Al5SE.

2) Shape:

Wire, strip, ribbon, sheet, coil

3) About us:

We can also design and manufacture according to your request. Shanghai Tankii Alloy Material Co., Ltd. is specialized in production of Ni-Cr Alloy, Cu-Ni Alloy, Fechral, thermocouple wire, pure nickel and other precision alloy materials in the form of wire, strip, rod, bar and plate.

4) Alloy character:

Ferritic alloys allow to reach process temperatures of 2192 to 2282F,
Corresponding to a resistance temperature of 2372F. All ferritic alloys have approximatively the same basis composition: 20 to 25 % of chromium, 4.5 to 6 % of aluminium, balance being iron. Some of them contain in addition rare earth, as yttrium or silicium. Those alloys having a ferritic structure, we observe, after a maintenance at high operating temperature, an important growth of the grain and a precipitation of chromium carbides at the grain joints level. This induces an increased embrittlement of the resistance, especially when it is come again at ambient temperature.

Specification:

Alloy Type	Diameter	Resistivity	Tensile	Elongation (%)	Bending	Max. Continuous	Working Life
	(mm)	(μΩm)(20°C)	Strength		Times	Service	(hours)
	(mm)	(μΩm)(20°C)	(N/mm²)			Temperature (°C)	(hours)
Cr20Ni80	<0.50	1.09±0.05	850-950	>20	>9	1200	>20000
	0.50-3.0	1.13±0.05	850-950	>20	>9	1200	>20000
	>3.0	1.14±0.05	850-950	>20	>9	1200	>20000
Cr30Ni70	<0.50	1.18±0.05	850-950	>20	>9	1250	>20000
Cr30Ni70	≥0.50	1.20±0.05	850-950	>20	>9	1250	>20000
Cr15Ni60	<0.50	1.12±0.05	850-950	>20	>9	1125	>20000
Cr15Ni60	≥0.50	1.15±0.05	850-950	>20	>9	1125	>20000
Cr20Ni35	<0.50	1.04±0.05	850-950	>20	>9	1100	>18000
Cr20Ni35	≥0.50	1.06±0.05	850-950	>20	>9	1100	>18000
1Cr13Al4	0.03-12.0	1.25±0.08	588-735	>16	>6	950	>10000
0Cr15Al5		1.25±0.08	588-735	>16	>6	1000	>10000
0Cr25Al5		1.42±0.07	634-784	>12	>5	1300	>8000
0Cr23Al5		1.35±0.06	634-784	>12	>5	1250	>8000
0Cr21Al6		1.42±0.07	634-784	>12	>5	1300	>8000
1Cr20Al3		1.23±0.06	634-784	>12	>5	1100	>8000
0Cr21Al6Nb		1.45±0.07	634-784	>12	>5	1350	>8000
0Cr27Al7Mo2	0.03-12.0	1.53±0.07	686-784	>12	>5	1400	>8000
