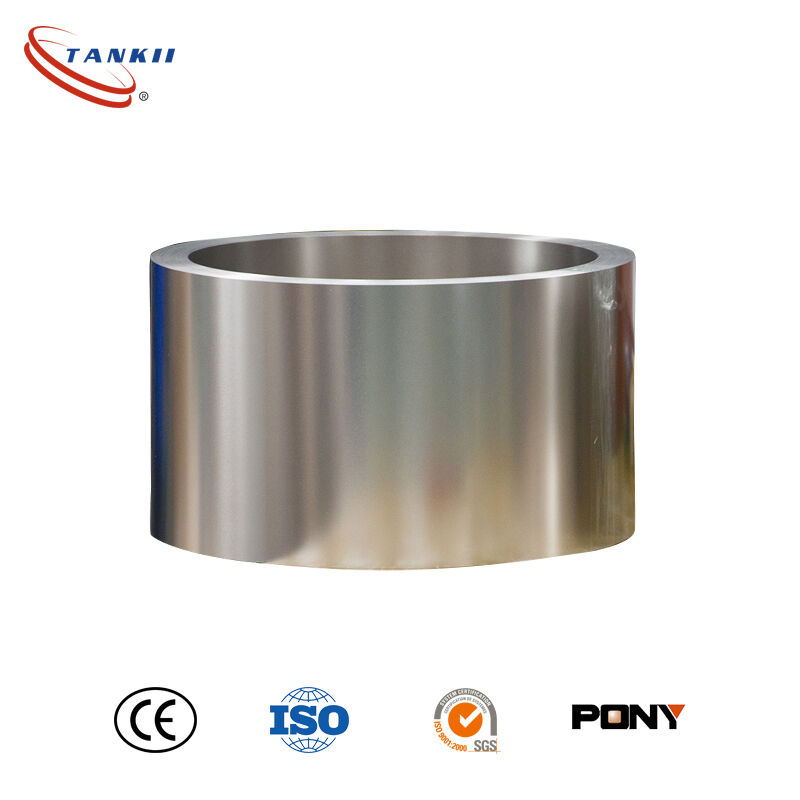

1K101 Fe-Based Amorphous Alloy Ribbon with High Permeability Low Core Loss and High Saturation Flux Density for High Frequency Transformers

Name: 1K101 Fe-Based Amorphous Alloy Ribbon with High Permeability Low Core Loss and High Saturation Flux Density for High Frequency Transformers
Brand: Shanghai Tankii Alloy Material Co.,Ltd
SKU: 1K101
Price: 499.05 USD
Availability: InStock

Dettagli del prodotto

Luogo di origine: Cina

Marca: TANKII

Certificazione: ISO9001

Numero di modello: 1K101

Termini di trasporto & di pagamento

Quantità di ordine minimo: 10KG

Prezzo: Negoziabile

Imballaggi particolari: Imballaggio in cartone

Tempi di consegna: 7-20 giorni

Termini di pagamento: T/T

Capacità di alimentazione: 500 kg/mese

Ottenga il migliore prezzo

Contatta ora

Specificità

Descrizione

Specificità

Evidenziare:
                                                                                                                                                                                                                                                                                                                                                                                                                                                          Fe-Based amorphous alloy ribbon, high frequency transformer alloy, precision alloy ribbon


Materiale:	Lega nanocristallina a base di Fe	Grado:	1K101
Spessore:	0,025 - 0,035 mm	Larghezza:	5-300mm
Induzione di saturazione:	≥1,20 T	Permeabilità:	Alto
Applicazione:	nucleo del trasformatore di corrente

Materiale:	Lega nanocristallina a base di Fe
Grado:	1K101
Spessore:	0,025 - 0,035 mm
Larghezza:	5-300mm
Induzione di saturazione:	≥1,20 T
Permeabilità:	Alto
Applicazione:	nucleo del trasformatore di corrente

Descrizione

1K101 Fe-Based Amorphous Alloy Ribbon with High Permeability Low Core Loss and High Saturation Flux Density for High Frequency Transformers

Product Description

Product Name	1K101 Nanocrystalline Ribbon 0.025mm Soft Magnetic Alloy Strip
Customized support	OEM, ODM
Place of Origin	China
Brand Name	Tankii

Product Introduction:

1K101 nanocrystalline ribbon is a Fe-based soft magnetic alloy manufactured by rapid solidification technology. With a thickness of 0.025 mm, it offers high permeability, low core loss, high saturation flux density and excellent thermal stability. The material is widely used for manufacturing nanocrystalline transformer cores, current transformer cores, current sensors, common mode chokes, EMI suppression components and other high-performance magnetic devices. Custom widths and slit sizes are available according to customer requirements.

Applications:
The product is mainly used to replace silicon steel sheet and used in many ways, such as: different power of frequency distribution transformers, power factor correction inductors, small transformers, high-power rectangular iron core, the output energy storage filter inductors, saturable reactor, anti-jamming filter inductorand IF transformer iron core. The working frequency range of the product is from 50Hz to 10kHz. When it is used as the iron core materials of a high-power switching power reactor , the using frequencies of the product can be up to 50kHz.

Physical Properties
Saturation magnetic flux density Bs	1.5 T
Curie temperature Tc	410ºC
Crystallization temperature Tx	535ºC
Saturationmagnetostriction coefficientλs	27×10-6
Density d	7.18 (g/cm3)
Resistivity ρ	137µΩ·cm
Continuous operating temperature	150ºC

Recommended by seller

Company Profile
Shanghai Tankii Alloy Material Co., Ltd. specializes in the production of resistance heating alloy, nickel chromium alloy, iron chromium aluminum alloy, nickel aluminum alloy, copper nickel alloy, thermocouple wire, pure nickel and other precision alloy materials in the form of round wire, ribbon wire, sheet, tape, strip, rod and plate. We have already attained ISO9001 quality system certification and ISO14001 environmental protection system certification. We own a complete set of advanced production flow of refining, cold reduction, drawing and heat treating. We also proudly have independent R&D capacity. Our company has accumulated lots of experience for over nine years in this field. During nine years, more than 60 management elites and high science and technology talents were employed. They have participated in every walk of the company life, which make our company keep blooming and invincible in the competitive market. Based on the principle of 'first quality, sincere service', our managing ideology is pursuing technology innovation and creating the top brand in the alloy field. We persist in Quality - the foundation of the survival. It is our forever ideology to serve you with full heart and soul. We are committed to providing customers from all over the world with high-quality, competitive products and perfect service. Our products, such us nichrome wires, nichrome strips, fecral wires, fecral strips, thermocouple wires, nickel wires and nickel strips have been exported to over 60 countries in the world. We are willing to establish strong and long-time partnerships with our customers.
Nanocrystalline Ribbon for Current Transformer Core Manufacturing

FAQ

1. Who are we?
We (TANKII) have accumulated lots of experiences more than 35 years in this field and have been exported to over 60 countries in the world. We specialize in the R&D and production of Nicr Alloy(Nickel-chromium Alloy), Fecral Alloy, Copper Nickel Alloy, other resistance alloy, thermocouple wire, thermocouple extension cable etc. Please send us inquiry, we offer more product information and quote.

2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.What can you buy from us?
Resistance Alloy,Thermocouple Wire,Precision Alloy,Nickel and Nickel Alloy,Copper and Copper Alloy

4. Why should you buy from us not from other suppliers?
Most complete range of products dedicated to Resistance, Thermocouple and Furnace manufacturers Quality with end to end production control Technical support and customer Service

5. What services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,CIP,FCA,CPT,DDP,Express Delivery;
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,Credit Card,PayPal,Western Union,Cash;
